DIY Mini split ZERO Heat pump 24000 BTU 22.3 SEER High Efficiency 5M-16ft

DIY Mini split ZERO Heat pump 24000 BTU 22.3 SEER High Efficiency 5M-16ft

Regular price $2,890.00 CAD
Regular price $3,299.00 CAD Sale price $2,890.00 CAD
Sale Sold out

Install your heat pump yourself safely and without having to empty your system.

AHRI certification

UL certified

EnergyStar certification suitable for cold climates (Cold Climate)

The super efficient heating system

ALL-INCLUSIVE SYSTEM 10-YEAR Warranty / WIFI connection (Siri / Alexa / IFTTT)

Line 5m-16 feet

DIY Kanartic ZERO, The very efficient 24,000 btu heat pump with a SEER of 22.3 (cold generation) and a HSPF of 11 (heat generation), it allows you to save several hundred dollars on your heating bill (~45% per year)

As with all Kanartic heat pumps equipped with a GMCC compressor, you can save a lot of money by using a ductless heat pump to cool but also to heat your spaces.
Heat pump heating allows you better air quality, saving money as well as overall savings for the planet.

Suitable for rooms between 1000-1700 ft² (approximate)

Quick setup

The system comes with vacuum hoses fitted with single plug sealable connections. Once plugged in, you release the gas from the compressor and voila, you can start your system. Easy and quick, Kanartic is the first Canadian manufacturer to equip its refrigeration connection systems with vacuum lines and sealable connectors.

Elegant heat pump

The elegant aesthetic of the interior modules as well as the remote control with aluminum surface offer a refined visual that will match all your decor.

Robust heat pump

We pay particular attention to the design of the products so that they are most effective but also so that they last a long time. For this, we designed our outdoor unit with triple thickness of protection on the top as well as a raised design for the best water flow.

Quick Specs :

    • 10 YEARS Warranty/5 YEARS Compressor/Parts
    • Power 24,000 BTUs
    • SEER 22.3
    • HSPF4 11
    • Operating temperature Up to -30C/-22F
    • Features All (see full list)
    • Remote control Remote control and Phone App via WIFI (Apple Siri / Amazon Alexa / IFTTT / Homebridge compatible ...)
    • Dehumidifier
    • Automatic cleaning function
    • Backlit remote control with a sleek and modern design with large screen.
    • IFeel function (the temperature adapts automatically thanks to the sensor integrated into the remote control)
    • Super economical operation (30% less consumption thanks to the new design of the fan blades and enlarged ducts)
    • Temperature stabilization at +-0.5 degrees thanks to our high frequency technology.
    • Intelligent dust collection system integrated into the compressor motor
    • Easy installation, PRE-CHARGED ALL-INCLUSIVE SYSTEM no need to empty the system:

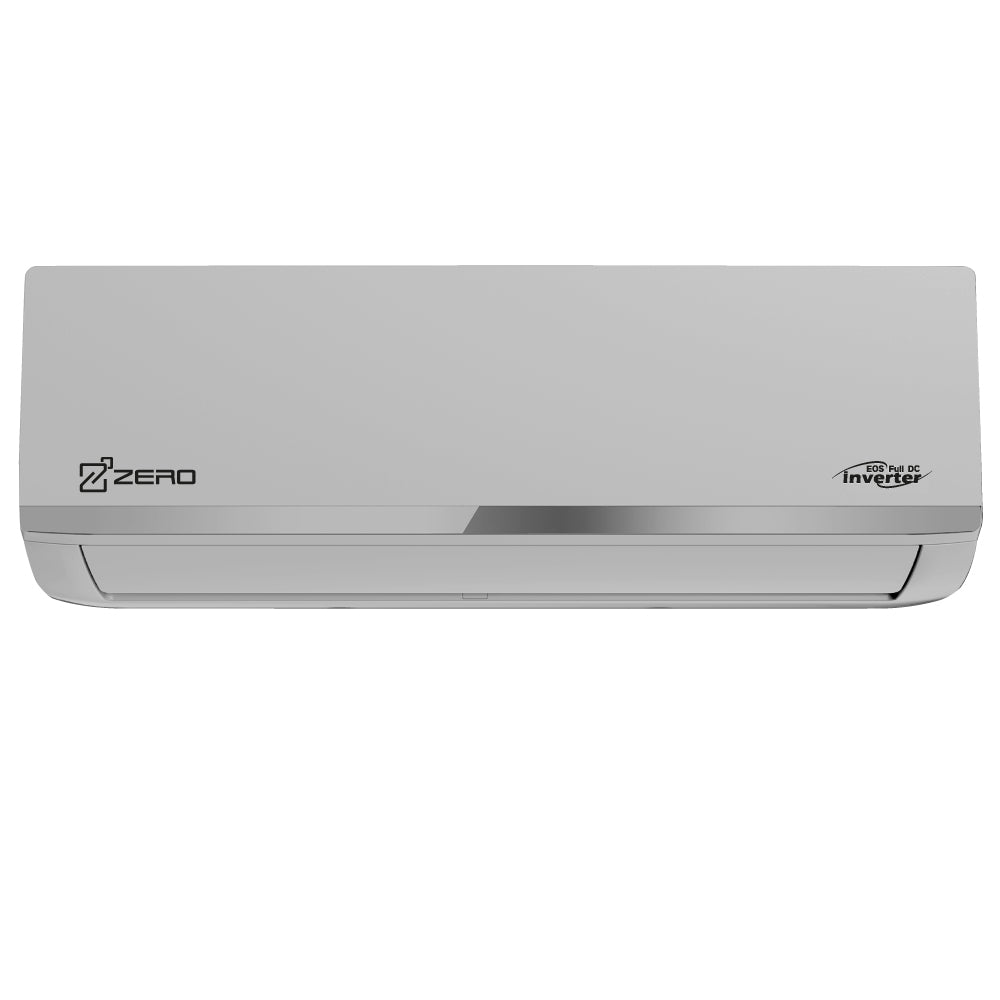

      • Indoor Unit

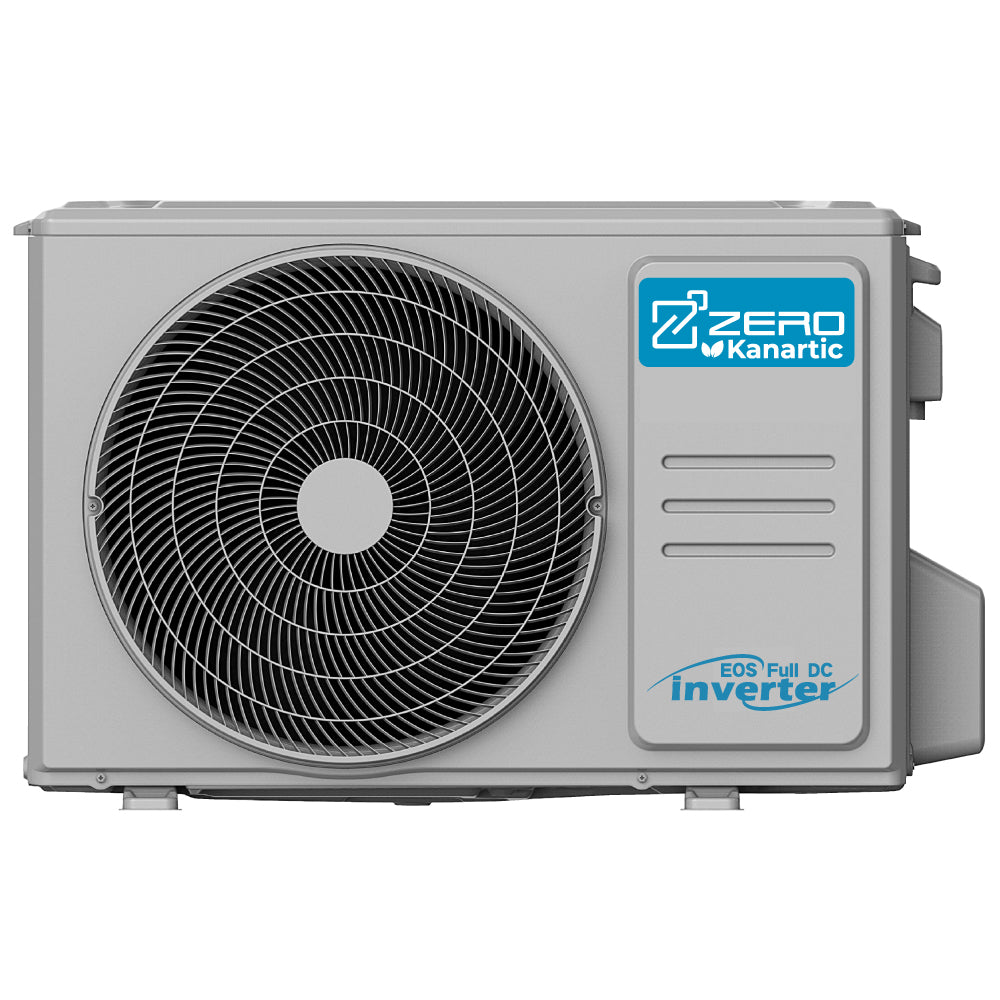

      • Outdoor unit
      • High performance copper refrigeration line 5 meters / 16 ft pre-emptied and pressurized.
      • Tube passes pipe through the wall
      • Exterior hardener insulation
      • Aluminum remote control (with battery)
      • WIFI system

Superior quality

The quality of manufacture as well as the new improvements make Kanartic mini splits one of the most advanced air conditioning systems on the market. (See more details)

Quality testing

All kanartic products use the best components to ensure the best product quality.

We pay particular attention to the design of the outer boxes as well as to the quality of our top-of-the-range compressors.

gold plating

Test 1: 1000 h of neutral salt spray (equivalent to more than 10 years of service life under normal conditions) = protection level ≥ 9.5, without perforation.

Test 2:Acid resistance tests for 30 minutes (equivalent to 10,000 times accelerated acid rain test): corrosion area ≤ 0.5%.

Triple layer rust protection
On the outdoor unit casing of the Kanartic series, the indoor metal parts of the unit and the circuit board are protected by the three-layer anti-rust protection.
Kanartic units are resistant to moisture, bacteria, salt, corrosion, acids and alkalis. Kanartic products are designed to stand the test of time.

stainless steel bolt
According to research, Kanartic stainless steel screws are more resistant to moisture, alkalis and corrosion than standard stainless steel screws. Kanartic stainless steel screws improve overall durability.

Coating: Golden fins
Golden Fin is more resistant to oxidation and corrosion than ordinary capacitor fins to provide a more stable and durable working environment.
It can effectively prevent bacteria from breeding and spreading and resist corrosive elements.


Deliveries are free


Easy and quick to install.

We can put you in touch with installers on request depending on your location contact us for more details

In the box

The system contains everything you need for installation:

-Synchronization cable between internal and external module and refrigeration pipes (5m / 16ft)

-External Compressor

-Remote control (with batteries and holder)

-Interior air conditioning (with fixing)

- WIFI module (802.11ABG)

Only the electrical wiring is not included.


All our products are Certified:



Energy Star Cold Climate


Our machines are on the Canadian government lists for subsidies.

You can find the list right here.

Kanartic Réno climat grant

Kanartic Novo Climate Grants
Kanartic Hydro Quebec Heat Pump Grant
BC Hydro Grant

View full details
air conditioner with high level of SEER
10 Year Warranty

Our 10-year compressor and 5-year parts warranty gives you undisputed assurance on your investment.
